Complete R & D house providing technical solutions in the field of Electronics & Electro mechanical Engineering

with Multi Disciplinary approach





S K Dynamics Pvt. Ltd. (SKD) was established in 1992 with sole purpose of pursuing R&D projects in the area of Electromechanical Engineering, Digital Signal processing, Power Electronics and System engineering


Since 1995 SKD is recognized by Department of Scientific and Industrial Research (DSIR), India as in-house R&D unit and now approved as Commercial R&D Company




SKD was stratgic partner of Analog Devices Inc. USA in the area of Motor Control


Around 2 Million Household appliances in the USA, Japan, Europe and China are working, using our Embedded Motor Control Technology






 Micro Grid Tie Inverter:

Micro Grid Tie inverter (Non-Isolated)



        Model: MGTI-1000-NI

        DC input power : 1200 W

        Input Voltage: 200 to 350 V DC

        Output Power : 1000 W

        Operating mode: stand alone, grid tie

        Isolation: No Isolation between Output and SPV

        Output voltage (Stand alone mode): 220V AC +/- 5%

        Output frequency (Stand alone mode): 50 Hz +/- 0.5Hz

        Voltage range (grid tie): 187 to 254 V AC

        Frequency range: 45 to 55 Hz

        Dimensions: 200 x 300 x 120 mm

        Weight: 3 kg approx

        Mounting: Wall Mount

        Samples will be available in Dec 2015

        Complete solution developed by S K Dynamics Pvt Ltd

        Covered by patent application

Details of invented technology protected by patent application

1.    Grid presence detection is easy

2.    Computation of Grid Voltage is simplified

3.    Computation of Grid Frequency and phase is simplified

4.    Performance of Phase Locked Loop is improved

5.    This technology eliminates reverse current from Grid to GTI

6.    Works on ARM MCU or DSP micro-controller

7.    Generally it operates without relay, relay is used as optional protection

8.    Reliability is significantly improved

9.    Good performance on small diesel alternators having voltage and frequency fluctuations

10.No hardware change required. Technology is implemented in the software

11.Overall technology is simplified using the invented technique



New Products & Projects of Y 2014:

Super Energy Efficient Ceiling Fan / BLDC ceiling fan / PMSM ceiling fan

Energy efficient window AC based on BLDC motor and automotive grade compressor

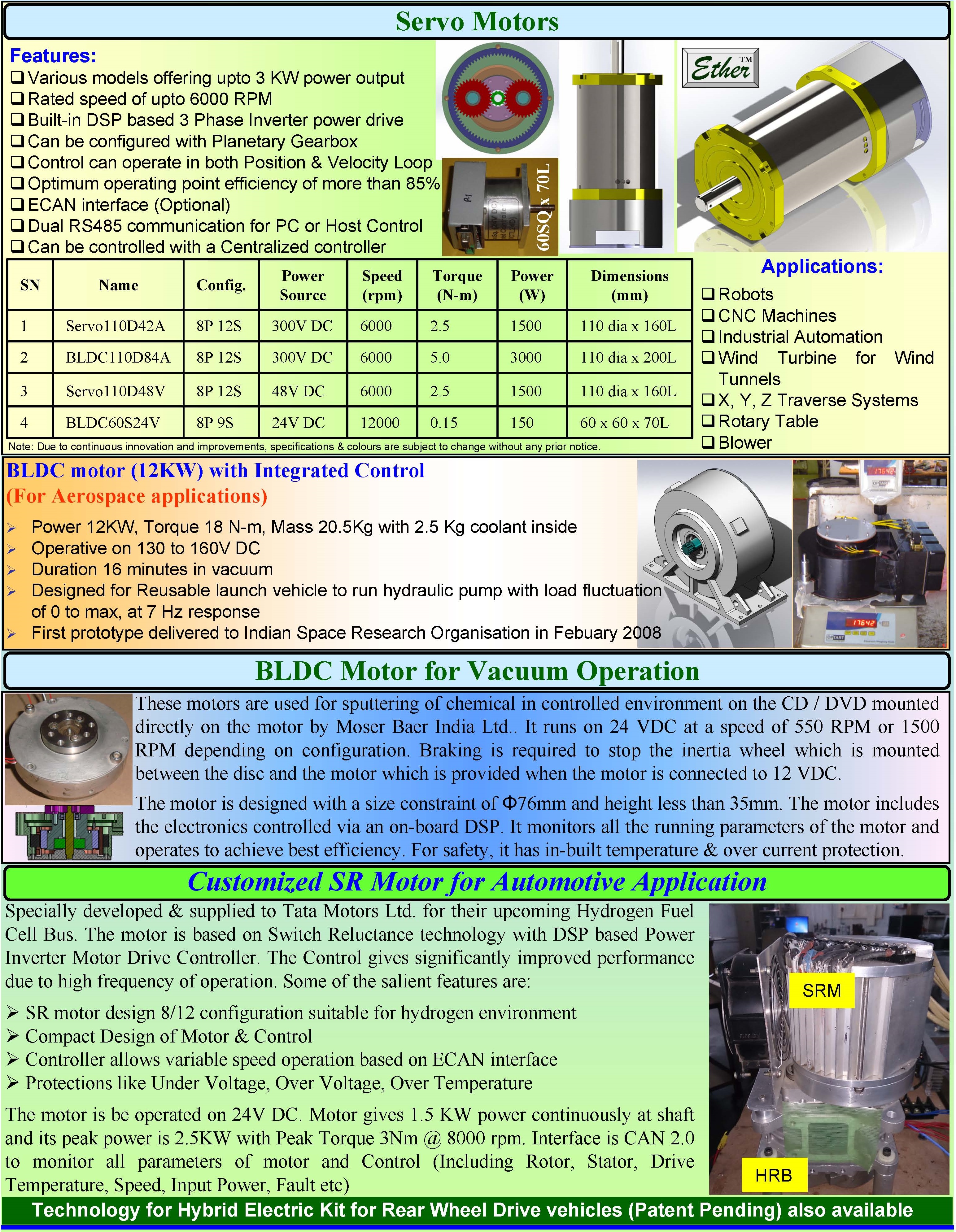

BLDC Servo Motors

Solid state relay

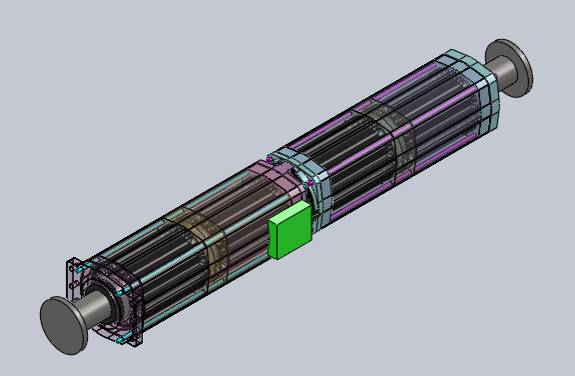

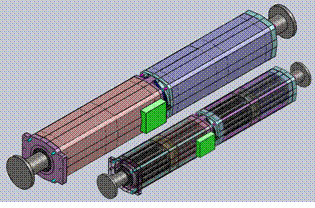

BLDC motor (12KW) with Integrated Control

(For Aerospace applications)

        Power 12KW, Torque 18 N-m

        Mass 20.5Kg, 2.5 Kg coolant inside

        Operative on 130 to 160V DC

        Duration 16 minutes in vacuum

        Designed for Reusable launch vehicle to run hydraulic pump with load fluctuation of 0 to max, at 7 Hz response

        First prototype delivered to Indian Space Research Organisation in Feb. 2008





High Efficiency Washing Machine Solution

Capacity 500W

The BLDC Motor & Control solution is designed to cope up with the increasing demands of Energy Efficient products & aims at reducing solution cost by nearly 20%.



A new patented technology is used to dynamically change motor parameters, thus reducing size & cost. It will be in production by December 2010.



Two separate solutions for small & large sized Washing Machines with scope for End-user customization.

BLDC Motors & Controls

( for Aerospace applications)



more information





The ADMC-326-SKD-1F Processor is an excellent choice for various Motor Control and Non-Motor applications. Based upon Analog Devices Inc.' ADMC326 Motor Control Processor, SKD-1F launched by SK Dynamics P. Ltd.-Roorkee (India) has Embedded Motor Control Drivers free-of-cost. Having 2 US patents on Motor Control to our credit, SKD provides these drivers to run motors such as PMSM, BLDC, AC Induction, Stepper and Switched Reluctance.

more information
